AE421 laser anti-collision device

It is suitable for monitoring the obstacle of lifting equipment such as traveling crane, quay crane, track crane, portal crane and so on.

The main technical parameters (laser anti-collision instrument)

,www.cokgc.com,comkgc@163.com

Description Parameter,www.cokgc.com,comkgc@163.com

Host main parameters

Operating voltage AC85-265V,www.cokgc.com,comkgc@163.com

Communication RS485

Alarm volume 0dB-80dB

Power <10W,www.cokgc.com,comkgc@163.com

Distance display range 0 ~ 50m

Display resolution of 0.1m

Measurement error ± 0.5 m

Use location indoor,www.cokgc.com,comkgc@163.com

Multi-channel signal output voice prompts alarm, digital communication output.

Left to right respectively 4 ~ 20ma three-wire current loop output, linear corresponding set value. (Load less than 500 ohms)

Digital display Display content: left to right distance

Display refresh rate: 2 seconds / times,www.cokgc.com,comkgc@163.com

SD memory built-in time system, you can set the time query. Room temperature 25 ° C, the annual time error ± 2.5 minutes.

Time system by the built-in rechargeable battery-powered, the system power off within 6 months without re-setting time.

By the standard SD card storage, storage format for the TXT file.,www.cokgc.com,comkgc@163.com

Operating temperature -15˚C to + 55˚C

Operating humidity 0% to 95% (non-condensing),www.cokgc.com,comkgc@163.com

Material ABS

Net weight 0.5Kg

AE421A sensor main parameters

Detection distance 200mm ... 50m (with mirrors)

Spot diameter Φ = 10m (15mm),www.cokgc.com,comkgc@163.com

Power supply voltage DC18-30V

Signal output 4-20mA

Output current Imax 100mA,www.cokgc.com,comkgc@163.com

Current carrying ≤ 250mA

The trigger time is 50 / s

Protection class IP54

Operating temperature -15˚C to + 55˚C,www.cokgc.com,comkgc@163.com

Shell material cold-rolled plate + galvanized + spray

Main function and characteristic,www.cokgc.com,comkgc@163.com



Pre-alarm, alarm with voice prompts, pre-alarm, alarm distance from the point of parameter settings.

Anti-collision alarm with mini-display, four digital display distance.

Compatible with two three-wire 4 ~ 20ma current output type collision sensor, flexible measurement range can be set.

Anti-collision alarm with SD memory function, with 4G memory card, built-in time system, continuous storage of data greater than 3 years.

With 485 communication output, can access PC.,www.cokgc.com,comkgc@163.com

With 4 ~ 20ma three-wire current loop output, can access PLC system.

Anti-collision alarm can be connected to the left and right sensors 4 ~ 20ma three-wire current loop input.

Operating voltage range: AC85 ~ AC265V (DC24V or AC16V can be customized).

Composition of anti - collision alarm system,www.cokgc.com,comkgc@163.com



Anti-collision alarm, anti-collision instrument composition diagram

Installation Dimension Diagram (Unit: mm),www.cokgc.com,+86 138 776 25497,comkgc@163.com



Anti-collision alarm, anti-collision instrument installation diagram



Anti-collision alarm, anti-collision instrument installation diagram

,www.cokgc.com,comkgc@163.com

Wiring diagram,www.cokgc.com,comkgc@163.com



Anti-collision alarm, anti-collision diagram,www.cokgc.com,comkgc@163.com



RS485 to PC communication protocol (baud rate 9600 / 8bit / 1bit stop / no parity),www.cokgc.com,comkgc@163.com



1. The communication data definition 7 bytes each 1s automatic output.,www.cokgc.com,comkgc@163.com

0xAA 0x04 0xXX 0xZZ 0xZZ checksum,www.cokgc.com,comkgc@163.com

AA is the synchronization header, 0x04 is the message length, the next two 0xXX bytes form a word, indicating the wind speed, and then the next two.

0xZZ bytes form a word, that the wind direction;,www.cokgc.com,comkgc@163.com

Checkshum (= 0xXX + 0xXX + 0xZZ + 0xZZ) for the checksum.



Example: 0xAA 0x04 0x01 0x6A 0x01 0x2C 0x98.,www.cokgc.com,comkgc@163.com

The wind speed is 0x016A = 36.2m / s and the wind direction is 0x012C = 300 °.,www.cokgc.com,comkgc@163.com

RS485 for the standard 9-pin interface on the side of the monitor, 1 foot 485 for the A line, 2 feet for the 485 B line.

Optional USB to RS485 data cable (model UT890).,www.cokgc.com,comkgc@163.com

Current output characteristic curve,www.cokgc.com,comkgc@163.com



Anti-collision alarm, anti-collision instrument curve,www.cokgc.com,comkgc@163.com



Note 1: The curve formula for the distance L = 0.2 + (I-4) * 49.8 / 16.,www.cokgc.com,comkgc@163.com

Note 2: When the distance is less than 0.2 meters, the output current is 3.5mA.,www.cokgc.com,comkgc@163.com

Note 3: When the distance is greater than 50 meters, the output current is 20.5mA.



AE421C anti-collision meter display installation method:,www.cokgc.com,comkgc@163.com

,www.cokgc.com,comkgc@163.com

Check that the power supply matches the rated voltage of the display.,www.cokgc.com,comkgc@163.com

The mounting surface and display surface should be parallel.,www.cokgc.com,comkgc@163.com

The display shall be fixed to the mounting surface with four M5 screws, the mounting surface shall be flat and of sufficient mechanical strength.

Unscrew the screw on the terminal cover and remove the cover to expose the terminal block.,www.cokgc.com,comkgc@163.com

Connect the power cord, data cable and control wire from the stuffing box, and connect the power cord and the signal wire correctly according to the terminal definition on the label.

After checking, turn on the power to have a digital display. When the wind speed sensor is rotating, the display will change.

Unused terminals may not be connected but must be tightened to avoid shorting the terminal screws into the display.

Anti - collision alarm, anti - collision instrument display map

AE421A mounting position,www.cokgc.com,comkgc@163.com

,www.cokgc.com,comkgc@163.com

Explosion - proof alarm experimental site,www.cokgc.com,comkgc@163.com



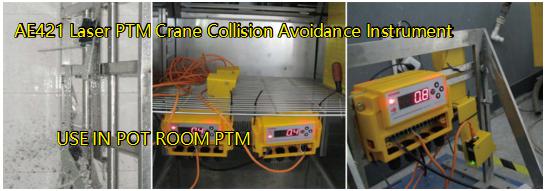

Anti-collision alarm, anti-collision scene map



Product files,www.cokgc.com,comkgc@163.com



Product Type: AE421,www.cokgc.com,comkgc@163.com

Application: for road, quay, rail cranes, portal cranes, etc. in the orbit of the lifting equipment monitoring obstacles to use

Applicable standards:

Product Qualification:

Design modification record: None

Have a quality problem: None

Delivery time: 5 sets / 20 days







+++++++++++++WWW.COKGC.COM  mailto:COMKGC@163.COM++++++++++++

Aviation obstruction lights View:
Light intensity aviation obstruction light
Light intensity aviation obstruction light
LS810 low light aviation lights
LS810 low light aviation lights
LM100 light intensity aviation obstruction lights
LM100 light intensity aviation obstruction lights
LH856U high light intensity aviation obstruction light
LH856U high light intensity aviation obstruction light
LQ006U Aviation warning ball
LQ006U Aviation warning ball
LS310C low light intensity dual aviation obstruction lights
LS310C low light intensity dual aviation obstruction lights
Light obstruction light in the LM101 light
Light obstruction light in the LM101 light
LM401 light intensity aviation obstruction lights
LM401 light intensity aviation obstruction lights
ABC-7M light intensity aviation obstruction lights
ABC-7M light intensity aviation obstruction lights
LM212 light intensity dual aviation obstruction lights
LM212 light intensity dual aviation obstruction lights
LS302 low light intensity dual aviation obstruction lights
LS302 low light intensity dual aviation obstruction lights
LS308 low light intensity dual aviation obstruction light
LS308 low light intensity dual aviation obstruction light
ABC-707 photoelectric switch control box
ABC-707 photoelectric switch control box
FR101 series of intelligent micro-controller
FR101 series of intelligent micro-controller
FR19 series synchronous flashing controller
FR19 series synchronous flashing controller
FR15 series of synchronous flashing controller
FR15 series of synchronous flashing controller
PJ0241 Aircraft Lamp Mounting Bracket
PJ0241 Aircraft Lamp Mounting Bracket
PJ002 Aircraft Lamp Mounting Bracket
PJ002 Aircraft Lamp Mounting Bracket
PJ005 Aerospace lamp mounting tube
PJ005 Aerospace lamp mounting tube
PJ009 aviation lamp mounting bracket
PJ009 aviation lamp mounting bracket
PJ024 aviation lamp flange
PJ024 aviation lamp flange
PJ028 Aircraft Lamp Mounting Bracket
PJ028 Aircraft Lamp Mounting Bracket
PJ030 Aircraft Lamp Mounting Bracket
PJ030 Aircraft Lamp Mounting Bracket
PJ067 Aircraft Lamp Mounting Bracket
PJ067 Aircraft Lamp Mounting Bracket
PJ069 Aircraft Lamp Mounting Bracket
PJ069 Aircraft Lamp Mounting Bracket
PJ089 aviation lamp mounting bracket
PJ089 aviation lamp mounting bracket
PJ090 aviation lamp mounting bracket
PJ090 aviation lamp mounting bracket
Telecom Tower Program (aviation obstruction lights)
Telecom Tower Program (aviation obstruction lights)
Chimney setting (aviation obstruction light)
Chimney setting (aviation obstruction light)
High-rise buildings and buildings (aviation obstruction lights)
High-rise buildings and buildings (aviation obstruction lights)
LT601U solar low light intensity aviation obstruction lights
LT601U solar low light intensity aviation obstruction lights
LT602U solar low-light dual-aviation obstruction lights
LT602U solar low-light dual-aviation obstruction lights
LS730U low light intensity aviation obstruction light
LS730U low light intensity aviation obstruction light
LT101 solar aviation obstruction lights
LT101 solar aviation obstruction lights
LT505 solar aviation obstruction lights
LT505 solar aviation obstruction lights
LT810A solar aviation obstruction lights
LT810A solar aviation obstruction lights
LS708 aviation obstruction lights
LS708 aviation obstruction lights
LS710 low light intensity aviation obstruction light
LS710 low light intensity aviation obstruction light
ABC-7L aviation obstruction lights
ABC-7L aviation obstruction lights

Industrial alarm sound audition comparison table View:
LR07 series of lights
LR07 series of lights
LR13 series of warning lights
LR13 series of warning lights
AE310 series of electronic buzzer
AE310 series of electronic buzzer
AL310 series of sound and light electronic buzzer
AL310 series of sound and light electronic buzzer
LD131A display
LD131A display
AL600U sound and light alarm
AL600U sound and light alarm
AL110U sound and light electronic buzzer
AL110U sound and light electronic buzzer
AL80 series of sound and light alarm
AL80 series of sound and light alarm
BC-8 sound and light electronic buzzer
BC-8 sound and light electronic buzzer
BC-8A / 8F electronic electric flute
BC-8A / 8F electronic electric flute
LS130 LED flashing warning light
LS130 LED flashing warning light
LT901 series of solar warning lights
LT901 series of solar warning lights
BC-110 series of sound and light electronic buzzer
BC-110 series of sound and light electronic buzzer
AL001 sound and light electronic buzzer
AL001 sound and light electronic buzzer
AE001 multi-tone waterproof alarm
AE001 multi-tone waterproof alarm
AS201 propaganda alarm
AS201 propaganda alarm
AS210 / AS211 / AS212 multi-purpose equipment alarm
AS210 / AS211 / AS212 multi-purpose equipment alarm
BC-2 series of multi-purpose equipment alarm
BC-2 series of multi-purpose equipment alarm
BC-30 high-power alarm
BC-30 high-power alarm
ABC-9 Series LED flashing warning lights
ABC-9 Series LED flashing warning lights
ABC-12 rotary warning light
ABC-12 rotary warning light
BC-3A electronic buzzer
BC-3A electronic buzzer
BC-3B sound and light electronic buzzer
BC-3B sound and light electronic buzzer
AL203 sound and light multi-layer alarm lights
AL203 sound and light multi-layer alarm lights
AL223 LED sound and light multi-layer alarm lights
AL223 LED sound and light multi-layer alarm lights
ABC-16 series LED spreader lights
ABC-16 series LED spreader lights
ABC-2 / ABC-3 series three-phase power indicator
ABC-2 / ABC-3 series three-phase power indicator
LD302 LED signal indicator
LD302 LED signal indicator
ABC-18 Series Arrow Signal Indicator
ABC-18 Series Arrow Signal Indicator
ABC-401 Arrow signal indicator
ABC-401 Arrow signal indicator
LR09 series flashing warning lights
LR09 series flashing warning lights

Industrial Lights View:
LF70H LED high pole light
LF70H LED high pole light
LF23 LED flood light
LF23 LED flood light
LF45 LED flood light
LF45 LED flood light
LW20 Blue
LW20 Blue
LW24 work lights
LW24 work lights
LW321A LED lighting
LW321A LED lighting
LW456A LED lighting
LW456A LED lighting
LY321B LED emergency lighting
LY321B LED emergency lighting
LY460A series LED emergency lighting
LY460A series LED emergency lighting
LY321A LED emergency lighting
LY321A LED emergency lighting
LW320A LED lighting
LW320A LED lighting
LY320A LED emergency lighting
LY320A LED emergency lighting
LW321B LED lighting
LW321B LED lighting
LY400A LED emergency lighting
LY400A LED emergency lighting
LW400A LED lighting
LW400A LED lighting
LF21 LED flood light
LF21 LED flood light
LP3 LED explosion-proof border lights
LP3 LED explosion-proof border lights
LW23 work lights
LW23 work lights
LW460A LED lighting
LW460A LED lighting
LW20 work lights
LW20 work lights
LW221A work lights
LW221A work lights
LW461B LED lighting
LW461B LED lighting
LF30 LED flood light
LF30 LED flood light
LF43 LED flood light
LF43 LED flood light
LP1 LED explosion-proof lights
LP1 LED explosion-proof lights
LW210A LED work lights
LW210A LED work lights
LW410 series of LED lighting
LW410 series of LED lighting
LY450A LED emergency lighting
LY450A LED emergency lighting
SL301A corner lights
SL301A corner lights
LW450A LED lighting
LW450A LED lighting
LY451B series LED emergency lighting
LY451B series LED emergency lighting
LW420 LED lighting
LW420 LED lighting
LW103A cabinet lights
LW103A cabinet lighting
LW13 Series T8 LED Tube
LW13 Series T8 LED Tube
LW430A LED lighting
LW430A LED lighting
LY410 series LED emergency lighting
LY410 series LED emergency lighting
LW301 desktop lighting
LW301 desktop lighting
Lighting rental, installation, transformation
Lighting rental, installation, transformation
LW401 LED track lights
LW401 LED track lights
LW103B cabinet lighting
LW103B cabinet lighting
LP2 LED explosion-proof lights (warning light)
LP2 LED explosion-proof lights (warning light)
LP2 LED explosion-proof lights (lights)
LP2 LED explosion-proof lights (lights)

Industrial Communication View:
DT series of digital broadcasting telephone
DT series of digital broadcasting telephone
DT63 series of telephone terminals
DT63 series of telephone terminals
DT20 series of dial-up digital broadcasting telephone
DT20 series of dial-up digital broadcasting telephone
TW101 three-way intercom system
TW101 three-way intercom system
OT017 wireless intelligent control terminal
OT017 wireless intelligent control terminal

Anemometer View:
FA134A wind speed sensor
FA134A wind speed sensor
FA214A wind speed and direction sensor
FA214A wind speed and direction sensor
FA01 series wind speed sensor
FA01 series wind speed sensor
FA02 series wind direction sensor
FA02 series wind direction sensor
FA220W Wireless Receiver
FA220W Wireless Receiver
FA232W Wireless Transmitter
FA232W Wireless Transmitter
FA101A + FA101C intelligent anemometer
FA101A + FA101C intelligent anemometer
FA13 series wind speed sensor
FA13 series wind speed sensor
FA132 series wind direction sensor
FA132 series wind direction sensor
FA13 * B Counterweight wind speed sensor
FA13 * B Counterweight wind speed sensor
FA130C intelligent wind speed and direction display
FA130C intelligent wind speed and direction display
FA213A wind speed and direction sensor
FA213A wind speed and direction sensor
FA101C wind speed display
FA101C wind speed display
The FA220C stores wind speed and direction indicator
The FA220C stores wind speed and direction indicator
FA220S wind speed and direction data storage software
FA220S wind speed and direction data storage software
Application of ZigBee Wireless Anemometer
Application of ZigBee Wireless Anemometer

Navigation Light View:
ML201A solar beacon lights
ML201A solar beacon lights
ML401A solar beacon lights
ML401A solar beacon lights
ML411A solar beacon lights
ML411A solar beacon lights
New product
View:
LF70H LED high pole light
LF70H LED high pole light
LW321A LED lighting
LW321A LED lighting
LS810 low light aviation lights
LS810 low light aviation lights
LF23 LED flood light
LF23 LED flood light
LF45 LED flood light
LF45 LED flood light
LW24 work lights
LW24 work lights
Light intensity aviation obstruction light
Light intensity aviation obstruction light
LR07 series of lights
LR07 series of lights
LW20 Blue
LW20 Blue
LY321B LED emergency lighting
LY321B LED emergency lighting
LY321A LED emergency lighting
LY321A LED emergency lighting
LW320A LED lighting
LW320A LED lighting
LY320A LED emergency lighting
LY320A LED emergency lighting
LW321B LED lighting
LW321B LED lighting
LB203B LED bulbs
LB203B LED bulbs
FA134A wind speed sensor
FA134A wind speed sensor
FA214A wind speed and direction sensor
FA214A wind speed and direction sensor
LW23 work lights
LW23 work lights
LP3 LED explosion-proof border lights
LP3 LED explosion-proof border lights
FA220W wireless receiver
FA220W Wireless Receiver
FA232W Wireless Transmitter
FA232W Wireless Transmitter
FA01 series wind speed sensor
FA01 series wind speed sensor
FA02 series wind direction sensor
FA02 series wind direction sensor
FA15 wind speed sensor
FA15 wind speed sensor
FA16 Wind direction sensor
FA16 Wind direction sensor
LT602U solar low-light dual-aviation obstruction lights
LT602U solar low-light dual-aviation obstruction lights
LT601U solar low light intensity aviation obstruction lights
LT601U solar low light intensity aviation obstruction lights
DT63 series of telephone terminals
DT63 series of telephone terminals
ML411A solar beacon lights
ML411A solar beacon lights
LB203A LED bulbs
LB203A LED bulbs

+++++++++++++WWW.COKGC.COM  mailto:COMKGC@163.COM++++++++++++

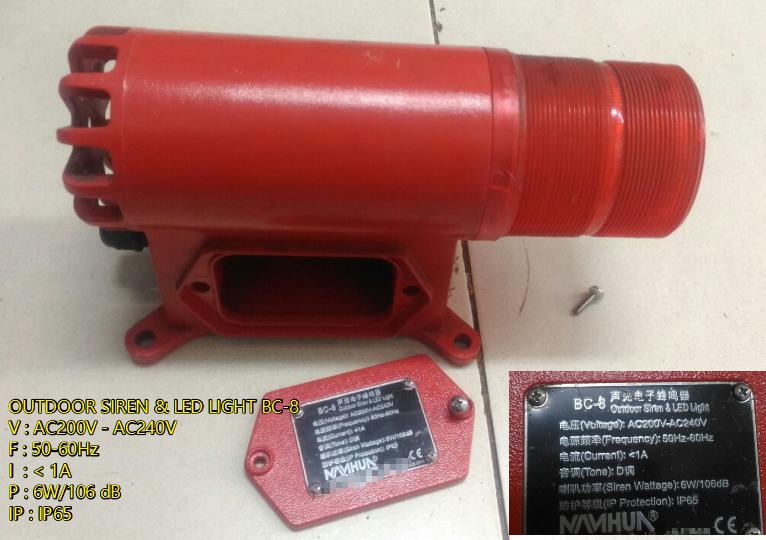

​OUTDOOR SIREN & LED LIGHT​ ​BC-8
V : AC200V - AC240V
F : 50-60Hz
I  : < 1A
P : 6W/106 dB
IP : IP65


+++++++++++++WWW.COKGC.COM  mailto:COMKGC@163.COM++++++++++++



Enquiry Mailto:

COMKGC@163.COM

We quotation

You side Released PO to us

We signed PO

You side payment

We delivery goods to your side.

Return to home page↑︿




previous posts:PTM 20170904
Next Article:+ PTM SPAREPARTS-完
Service Hotline
+8613877625497
E-mail
COMKGC@163.COM
close
