Anode crushing machine
2014-11-14 19:55:29

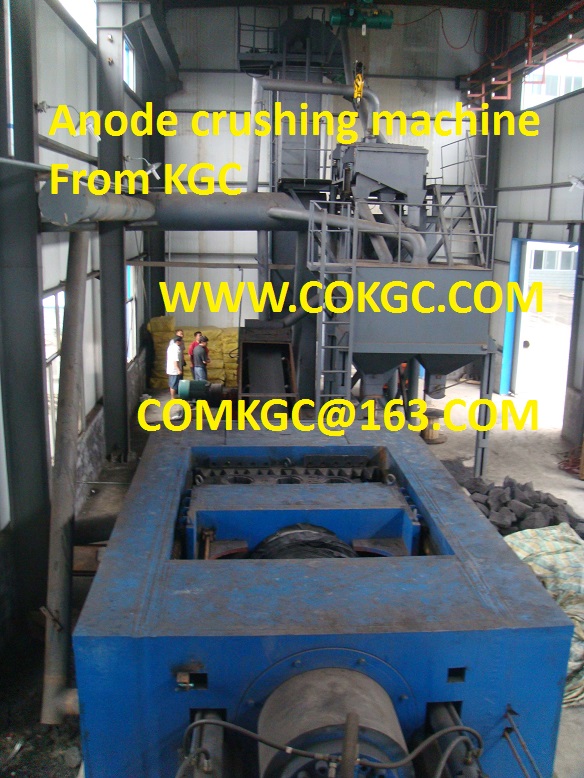

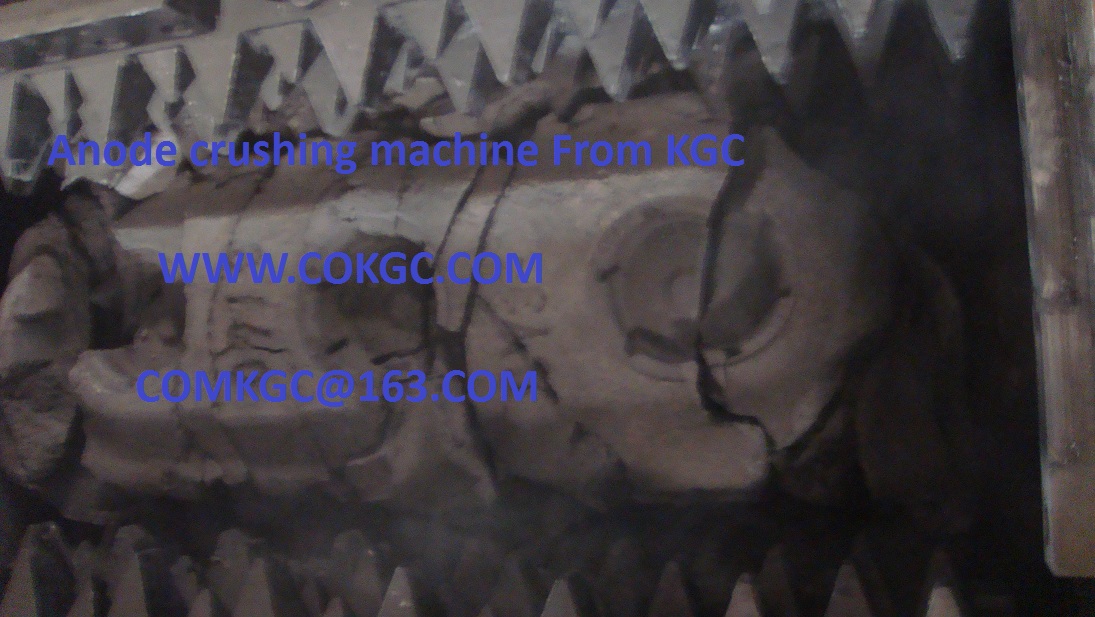

Anode crushing machine
Aluminium Plant→Anode Plant→Anode crushing machine

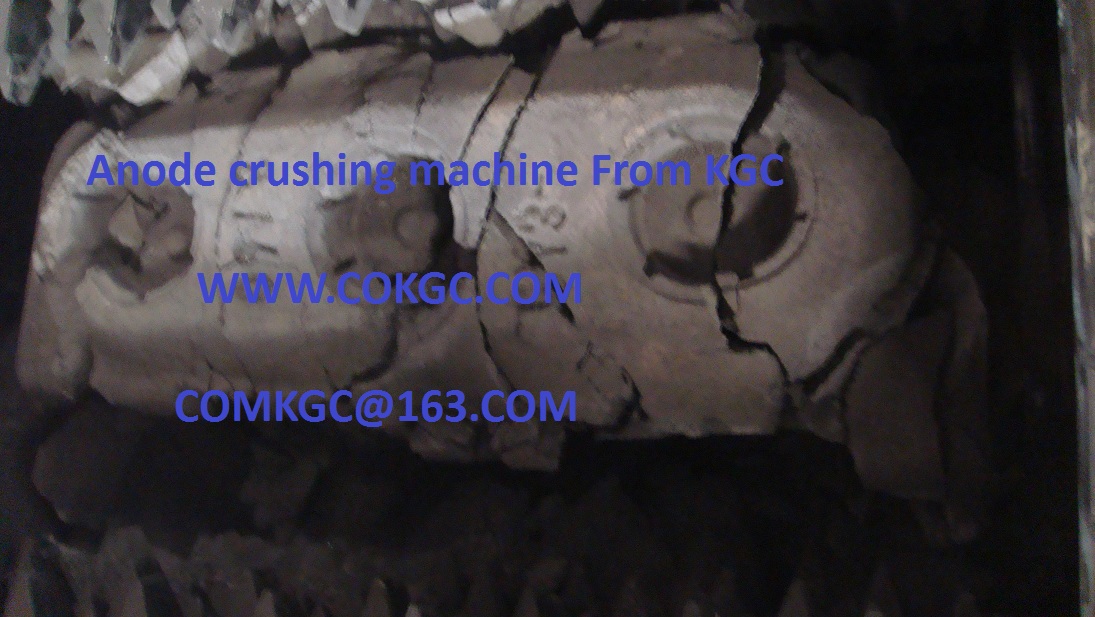

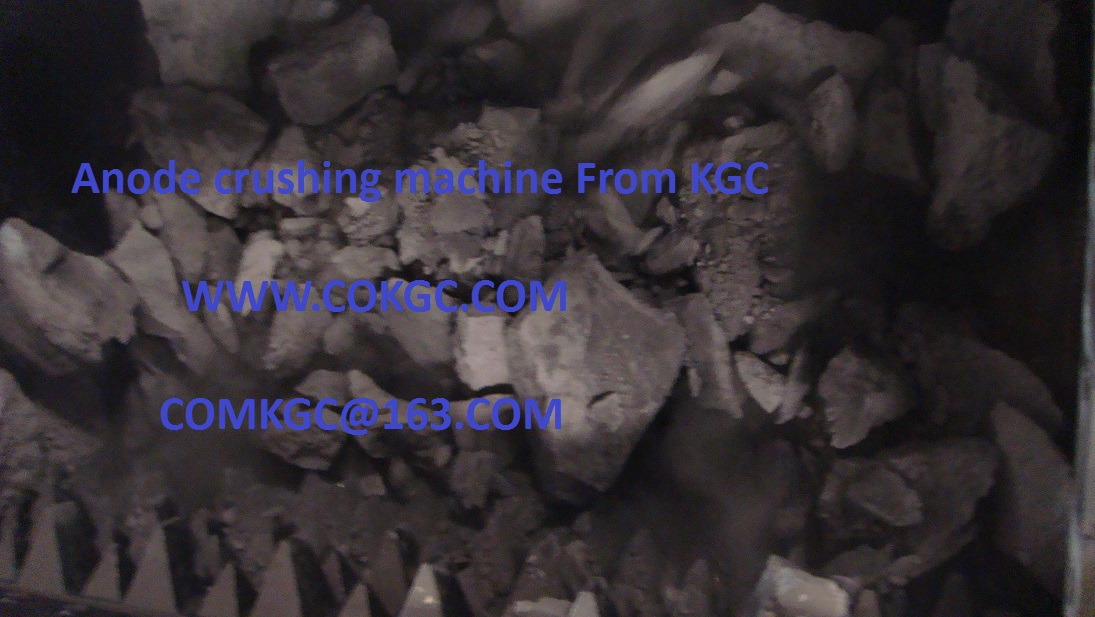

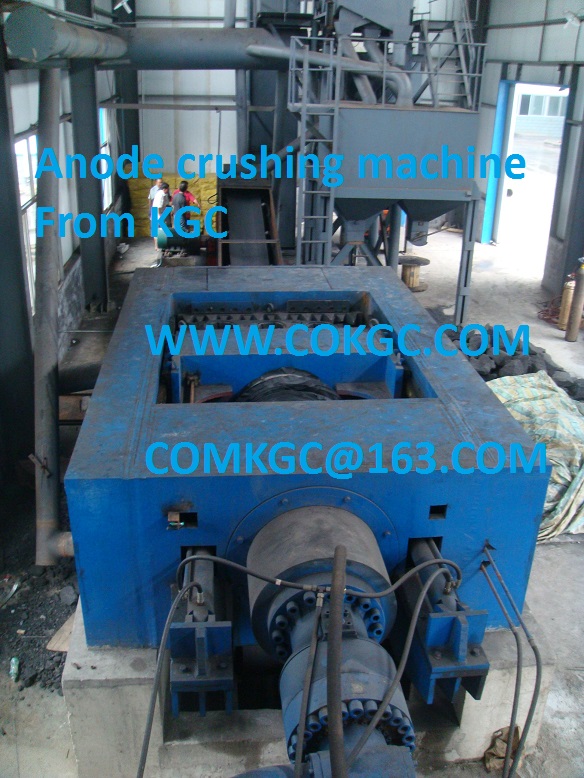

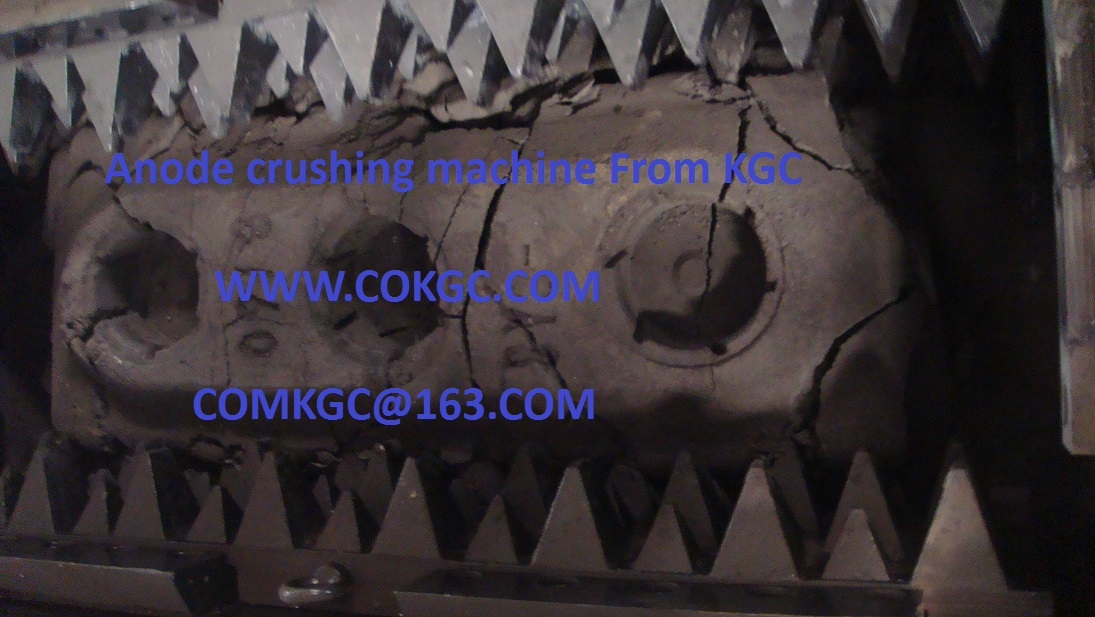

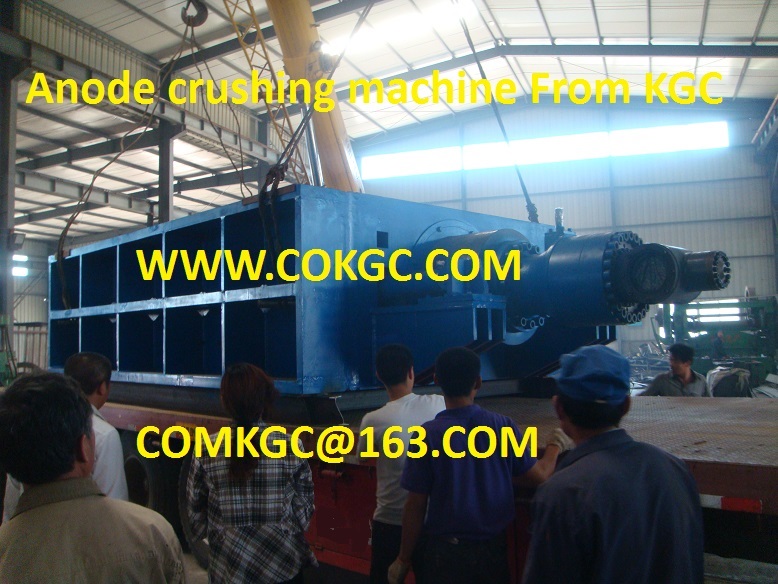

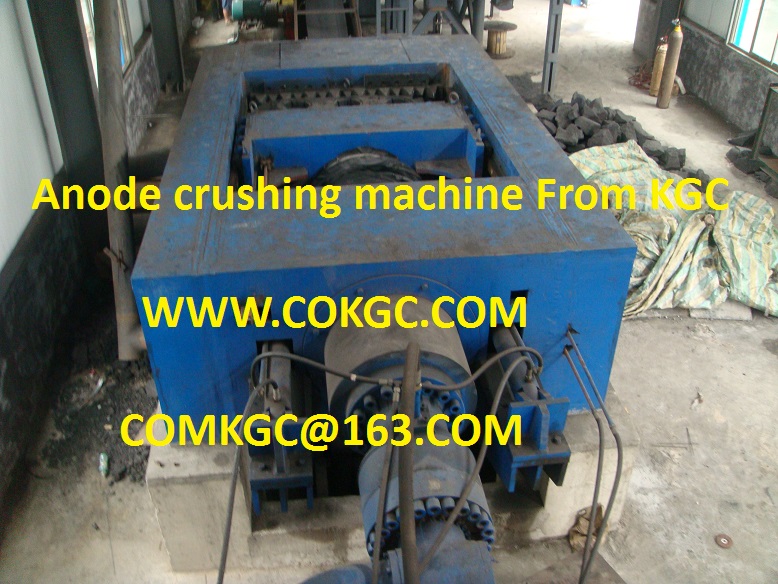

 Anode crushing machine.
The following design criteria:
·   Average throughput:6~40t/hr.
·   Being able to crush full sized anodes (1800 x 655 x 655 [mm]).
·   Being able to pass an steel stub (dimensions: Ø125mm  length:200mm ) through the machine without causing damage to equipment.
·   Maximum crushed material size is 150mm.
·   Cycle time of one (1) full size anode crushed >60 sec.
·   Easy to maintain.
·   The machine is to be operated in a dusty, hot and humid industrial environment. (max temp reaching 65°C during summer)
·   Noise level max 80dB one meter from noise source.
·   Electric equipment to conform to following:
--  400 V  AC,  3 phase,  50 Hz

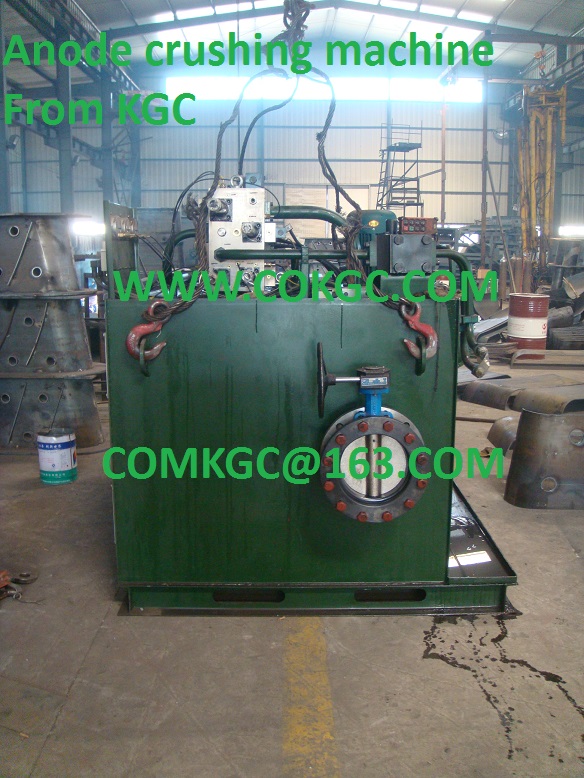

-- Control voltage 110 V  AC, single phase, 50 Hz,The crusher have HPU (Hydraulic power unit) and with all sensors, wiring, hydraulic cylinders, hydraulic valves, piping on machine and all other instrumentation
-- Programing of the equipment ins VHE responsibility but a basic FDS (Functional Design Specification) is to be supplied with the equipment.
The machine shall be delivered fully wired with control system.

anode crushing machine , anode crusher manchine

anode crushing machine , anode crusher manchine

anode crushing machine , anode crusher manchine

anode crushing machine , anode crusher manchine

 anode crushing machine anode crusher machine

 anode crushing machine anode crusher machine







anode crushing machine




anode crushing machine
